MBH ETFE 825L sheets are extruded by us using premium virgin resin from Daikin. These high-performance fluoropolymer sheets combine exceptional chemical resistance with superior weatherability and inherent high transparency.
Key Features: Broad Chemical Resistance | Virgin Unfilled | Superior Weatherability | High Transparency (Translucent) | Wide Service Temperature (-65°C to 150°C) | High Mechanical Strength

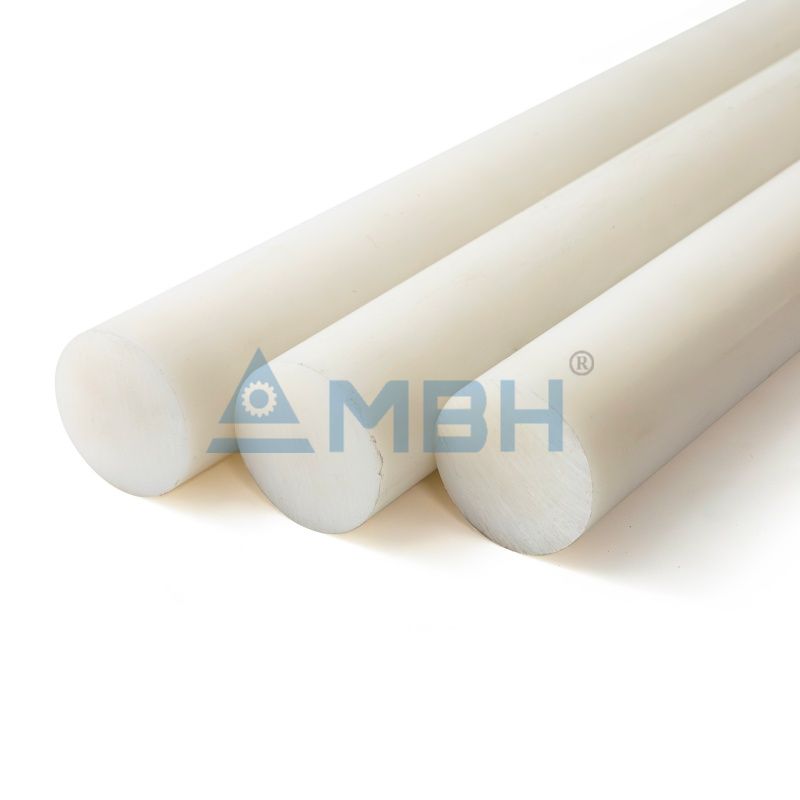

Available Rods size
Diameters | 3mm to 60mm |
|---|
Length | 1000mm / 2000mm |
|---|
Colors | Natural |
|---|
Tolerance | 0.1mm~0.5mm |
|---|
Surface | Smooth, bubble-free |
|---|
Cutting | Custom cut-to-length available |
|---|
Available Sheets size
Thickness | 10mm to 100mm |
|---|
Length | 630 x 1000mm |
|---|
Tolerance | 0.2mm~1mm |
Cutting | Custom cut-to-length available |
✅ Most standard sizes within this range are regularly stocked and can ship within 24-48 hours after payment.
✅ For custom or non-standard sizes, typical lead time is 3-4 weeks.
✅ For real-time stock availability on your specific size, please contact us or request a quote — we'll confirm stock status and lead time immediately.
Technical Properties
Property | Typical Value | Unit | Test Standard |
|---|
Density | 1.7 | g/cm³ | ISO 1183 |
Tensile Strength | 45 | MPa | ISO 527 |
Melting Point | 258 | °C | ISO 11357 |
Elongation at Break | NA | % | ISO 527 |
For complete technical data, please download the full TDS:
Download Full Technical Data Sheet (PDF)
Certifications & Compliance
✓ RoHS Compliant — Free from restricted hazardous substances (lead, mercury, cadmium, etc.)
✓ REACH Compliant — Meets EU chemical safety regulations
✓ FDA Compliant — Suitable for food-contact applications
✓ UL94 V-0 — Inherently flame retardant, verified by independent testing
✓ COA (Certificate of Analysis) — Batch-specific quality test reports available for every shipment
Certificates and test reports available upon request.
Where is it used?
Category | Typical Applications |
|---|
Chemical Processing | Corrosion-Resistant Linings, Pipe & Fitting Components, Valve Seats & Seals |
Wire & Cable | High-Performance Insulation, Jacketing for Aerospace/Military Cables, Heat Shrink Tubing |
Architecture & Construction | Architectural Membranes (Roofing), Skylights, Anti-Stick Coatings for Glass |
Semiconductor & Industrial | Wafer Carriers, Chemical Storage Tanks, Release Films, Solar Panel Back sheets |
Whether you need a custom-cut piece, a mold-opened part, or fast-shipping standard stock — our team is ready to help.
Have a drawing or custom specification? Send it to us for a free technical evaluation and quote.
Need standard sizes fast? Check real-time stock availability and get same-week shipping.
