SP-1
MBH
MBH-PI SP-1

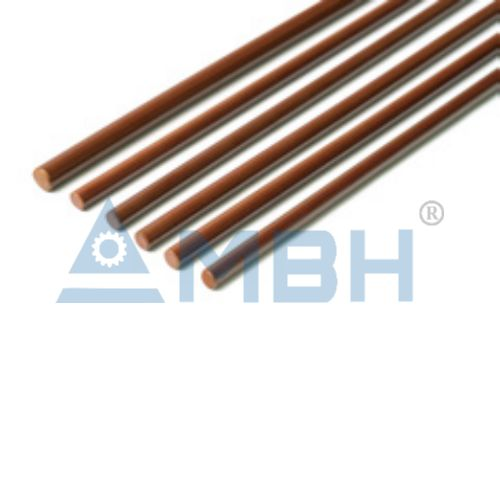

MBH SP-1 rods are extruded by us using premium 100% pure polyimide resin from DuPont. These high-performance thermoset rods combine exceptional heat resistance (up to 288°C) with superior mechanical strength, electrical insulation, and inherent dimensional stability.
Key Features: Extreme Heat Resistance (288°C) | Unfilled / High Purity | Superior Strength & Toughness | Excellent Electrical Insulation | Low Outgassing (Vacuum Grade) | Cryogenic Stability
✅ Most standard sizes within this range are regularly stocked and can ship within 24-48 hours after payment.
✅ For custom or non-standard sizes, typical lead time is 3-4 weeks.
✅ For real-time stock availability on your specific size, please contact us or request a quote — we'll confirm stock status and lead time immediately.
Property | Typical Value | Unit | Test Standard |
|---|---|---|---|
Density | 1.43 | g/cm³ | ISO 1183 / ASTM D792 |
Tensile Strength | 86.2 | MPa | ISO 527 / ASTM D1708 |
Max. Continuous Service Temp. | 288 | °C | ISO / ASTM |
Dielectric Strength | 22 | MV/m | ASTM D149 |
For complete technical data, please download the full TDS:
Download Full Technical Data Sheet (PDF)
✓ RoHS Compliant — Free from restricted hazardous substances (lead, mercury, cadmium, etc.)
✓ REACH Compliant — Meets EU chemical safety regulations
✓ UL94 V-0 — Inherently flame retardant, verified by independent testing
✓ COA (Certificate of Analysis) — Batch-specific quality test reports available for every shipment
Certificates and test reports available upon request.
Category | Typical Applications |
|---|---|
Aerospace | Cryogenic Components, Vacuum Chamber Parts, Thrust Washers & Bearings |
Semiconductor | Wafer Handling Pins, Test Sockets, Insulating Rings (High Purity) |
Automotive | Transmission Thrust Washers, Seals, High-Temp Electrical Insulators |
Industrial | High-Load Bearings, Cryogenic Valve Seats, Precision Spacers |
 | ||
Whether you need a custom-cut piece, a mold-opened part, or fast-shipping standard stock — our team is ready to help.
Have a drawing or custom specification? Send it to us for a free technical evaluation and quote.
Need standard sizes fast? Check real-time stock availability and get same-week shipping.
