MBH PEEK 550GL30 rods are extruded by us using premium virgin resin from ZYPEEK (China), These high-performance thermoplastic rods combine excellent high-temperature resistance with superior mechanical strength and dimensional stability.
Key Features: High Temp Resistance (260°C) | 30% Glass Reinforced | High Rigidity & Strength | Excellent Dimensional Stability | Cost-Effective Alternative
Rods
iameters | 3mm to 260mm |
|---|
Length | 1000mm / 2000mm |
|---|
Colors | Natural |
|---|
Tolerance | ±0.1mm~±0.5mm |
|---|
Surface | Smooth,bubble-free |
|---|

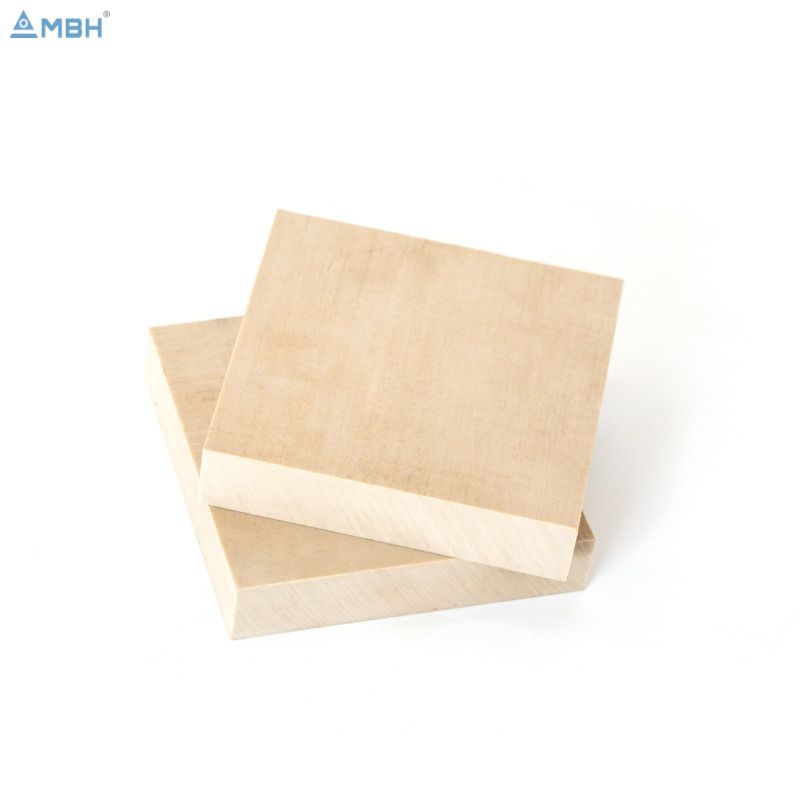

Sheet
Thickness | 10mm to 100mm |
|---|
Length | 1000 x 2000mm |
|---|
Technical Properties
Property | Unit | Value | Test Method |
|---|
Density | g/cm³ | 1.50 | ISO 1183 |
Tensile Strength | MPa | 155 | ISO 527 |
Max. Service Temp (Long-term) | ℃ | 260 | - |
Flame Retardant Grade | - | V-0 | V-0 UL94 |
For complete technical data, please download the full TDS:
Download Full Technical Data Sheet (PDF)
Where is it used?
Category | Typical Applications |
|---|
Automotive & Aerospace | Bearings, Gears, Thrust Washers, Structural Components |
Oil & Gas | Seal Rings, Valve Seats, Downhole Drill Parts, Insulators |
Medical | Surgical Instrument Handles, Dental Components, Sterilization Trays |
General Engineering | Semiconductor Wafer Carriers, Pump Impellers, High-Temp Insulators |
Ready to Start Your Project?
Don't wait. Contact us today for a free quote or to request a sample for testing.
