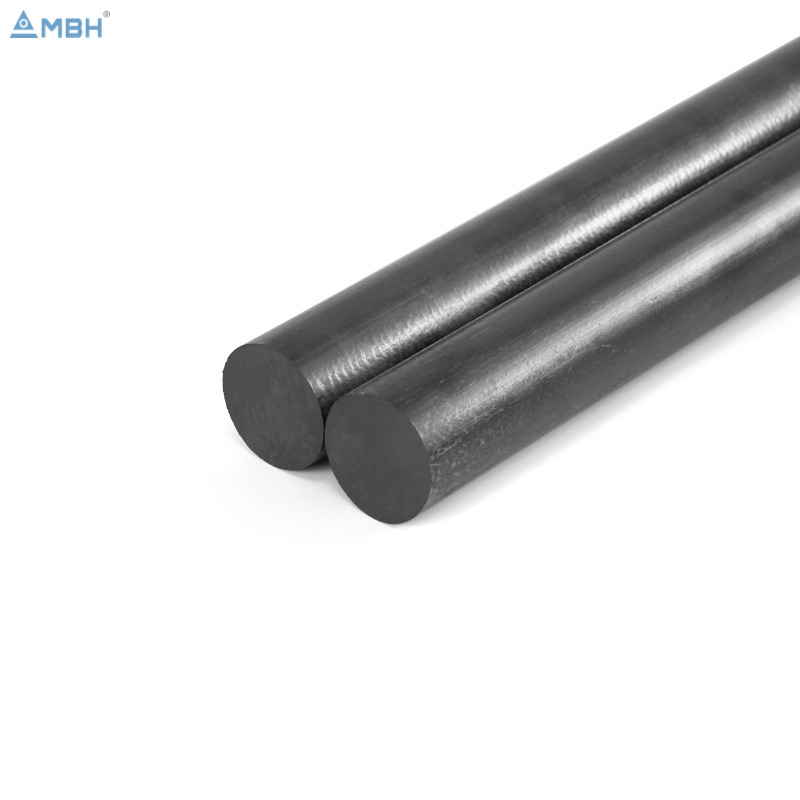

MBH PEEK 550CA30 rods are extruded by us using premium virgin resin from ZYPEEK (China). These high-performance thermoplastic rods combine exceptional mechanical strength with superior wear resistance and dimensional stability.
Key Features: High Mechanical Strength | 30% Carbon Reinforced | Superior Wear & Friction Resistance | High Rigidity | Excellent Dimensional Stability
Rods
Diameters | 3mm to 260mm |
|---|
Length | 1000mm / 2000mm |
|---|
Colors | Natural |
|---|
Tolerance | ±0.1mm~±0.5mm |
|---|
Surface | Smooth, bubble-free |
|---|

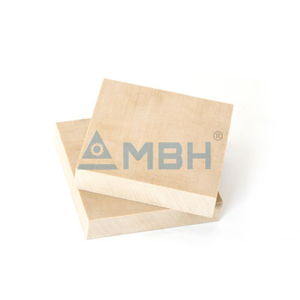

Sheet
Thickness | 10mm to 100mm |
|---|
Length | 1000 x 2000mm |
|---|
Technical Properties
Test Item | Typical Value | Unit | Test Method |
|---|
Density | 1.40 | g/cm³ | ISO 1183 |
Tensile Strength | 240 | MPa | ISO 527 |
Compression Strength | 300 | MPa | ISO 604 |
Melting Point | 343 | °C | ISO 11357 |
For complete technical data, please download the full TDS:
Download Full Technical Data Sheet (PDF)
Where is it used?
Category | Typical Applications |
|---|
Automotive & Aerospace | Structural Brackets, Aircraft Interior Panels, Drone Components, Fuel System Parts |
Oil & Gas | Seal Rings, Bearing Pads, Downhole Drill Parts, Wear Bushings, Valve Seats |
General Engineering | Gears, Piston Rings, Compressor Vanes, Textile Machine Parts, High-Load Bearings |
Semiconductor | Wafer Carriers, IC Test Sockets, CMP Retainer Rings, Cleanroom Components |
Ready to Start Your Project?
Don't wait. Contact us today for a free quote or to request a sample for testing.
What‘s App / E-mail
