MBH PC+GF sheets/rods are extruded/compression-molded by us using premium polycarbonate resin reinforced with glass fiber. These high-performance engineering plastic sheets and rods combine exceptional mechanical strength with superior rigidity, dimensional stability, and enhanced heat resistance — ideal for machining and structural applications.
Key Features: High Strength & Stiffness | Excellent Dimensional Stability | Good Machinability | High Heat Deflection Temperature | Low Moisture Absorption

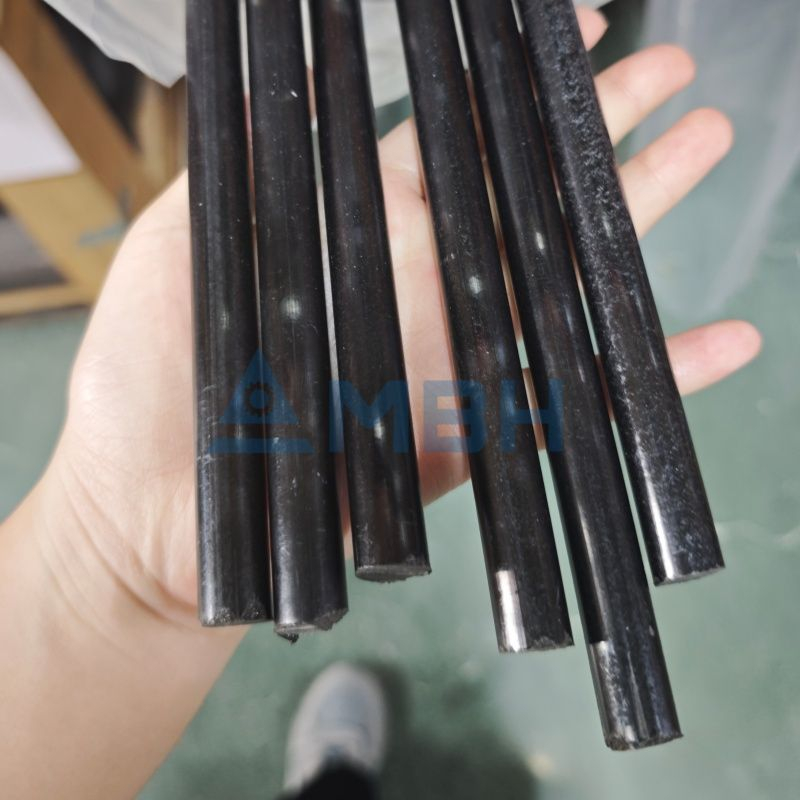

Rods
Diameters | 3mm to 260mm |
|---|
Length | 1000mm / 2000mm |
|---|
Colors | Natural/Black |
|---|
Tolerance | 0.1mm~0.5mm |
|---|
Surface | Smooth, bubble-free |
|---|
Sheet
Thickness | 10mm to 100mm |
|---|
Length | 630 x 1000mm |
|---|
Tolerance | 0.5mm~1mm |
|---|
Comparison Table — PC+GF Sheets/Rods by GF Content
Property | PC+GF15 | PC+GF20 | PC+GF25 | PC+GF30 |
|---|
Tensile Strength (MPa) | ~90 | ~100 | ~110 | ~120 |
Flexural Strength (MPa) | ~130 | ~140 | ~150 | ~160 |
Flexural Modulus (GPa) | ~4.5 | ~5.5 | ~6.5 | ~7.5 |
Notched Impact Strength (kJ/m²) | Higher | Medium | Medium-Low | Lower |
Heat Deflection Temp. HDT (°C) | ~135 | ~140 | ~142 | ~145 |
Rigidity / Dimensional Stability | Fair | Good | Very Good | Excellent |
Toughness | Best | Good | Fair | Lower |
Machinability (Turning/Milling/Drilling) | Good | Good | Good | Good (harder, slightly more tool wear) |
Typical Applications | General structural parts, spacers | Brackets, guide rails | High-rigidity structural parts, jigs & fixtures | High-load structural parts, precision machined components |
Notes:
Higher glass fiber content improves strength, rigidity, and heat resistance — ideal for high-load and precision-machined components.
Higher GF content reduces toughness and slightly increases tool wear during machining.
Lower GF content (15%) suits applications requiring impact resistance; higher GF content (30%) suits high-rigidity, high-precision applications.
PC+GF: Rigidity Without Sacrificing Toughness
Unlike most glass-fiber reinforced plastics, PC+GF retains better impact resistance even at higher GF loadings, compared to GF-reinforced nylon or polyester at similar strength levels.
This makes it ideal when a part needs both structural rigidity and impact tolerance — not just one or the other.
Where is it used?
Category | Typical Applications |
|---|
Automotive | Structural Brackets, Housings, Under-Hood Components, Connectors |
Electrical & Electronics | Insulating Parts, Connector Housings, Circuit Breaker Components |
Industrial Machinery | Gears, Bushings, Structural Supports, Wear-Resistant Parts |
Aerospace & Precision Equipment | Precision Machined Parts, Jigs & Fixtures, Load-Bearing Components |
