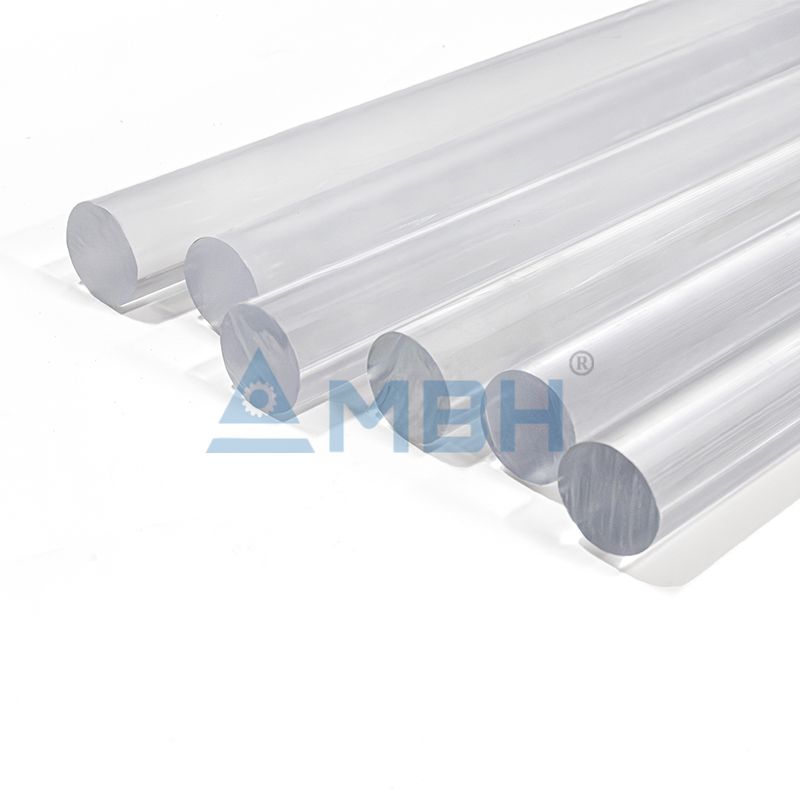

MBH PC 2850 rods are extruded by us using premium virgin Covestro polycarbonate resin. These high-performance thermoplastic rods combine excellent optical clarity, outstanding impact strength, and high dimensional stability, making them ideal for precision machined components.
Key Features: High Impact Resistance | Excellent Dimensional Stability | Good Heat Resistance (up to 120°C-130°C) | High Mechanical Strength & Stiffness | Good Electrical Insulation | Easily Machinable
Rods
Diameters | 3mm to 260mm |
|---|
Length | 1000mm / 2000mm |
|---|
Colors | Natural |
|---|
Tolerance | ±0.1mm~±0.5mm |
|---|
Surface | Smooth, bubble-free |
|---|
Sheet
Thickness | 1mm to 100mm |
|---|
Length | 1000 x 2000mm |
|---|
Technical Properties
Property | Unit | Value | Test Method |
|---|
Water absorption | % | 0.12 | ISO 62 |
Tensile Strength | MPa | 68 | ISO 527 |
Charpy notched impact strength | kJ/m² | 7.5 | ISO179 |
Dielectric strength | kV/mm | 34 | IEC 60243 |
For complete technical data, please download the full TDS:
Download Full Technical Data Sheet (PDF)
Where is it used?
Category | Typical Applications |
|---|

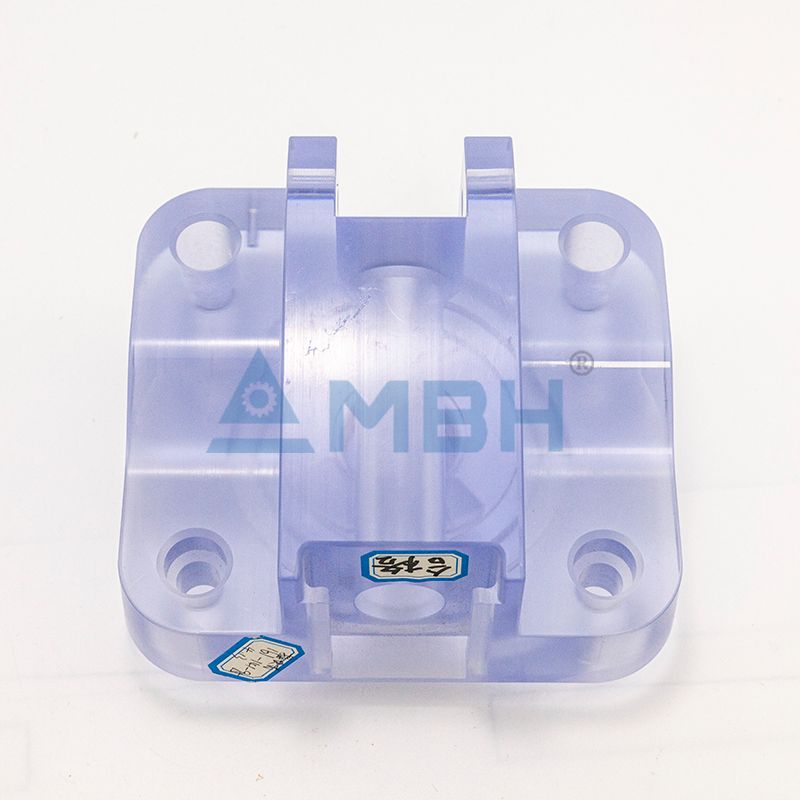

Fluid Handling & Clinical | CNC Fluid Manifolds, Valve Bodies, Diagnostic Equipment Windows |
Surgical & Equipment | Machined Surgical Instrument Handles, Custom Sterilization Trays |
Medical Electronics | Machined Insulating Bobbins, Sensor Mounting Brackets, Isolation Blocks |
Optical & Protective | High-Clarity Optical Windows, Laboratory Face Shields |
