MBH PCTFE 300H sheets are extruded by us using premium virgin resin from Daikin. These high-performance fluoropolymer sheets combine exceptional chemical resistance with superior sealing properties, rigidity, and inherent cryogenic stability.
Key Features: Chemical Resistance | Virgin / Unfilled | Superior Sealing & Hardness | Non-Combustible | Excellent Cryogenic Stability (-196°C) | Zero Moisture Absorption

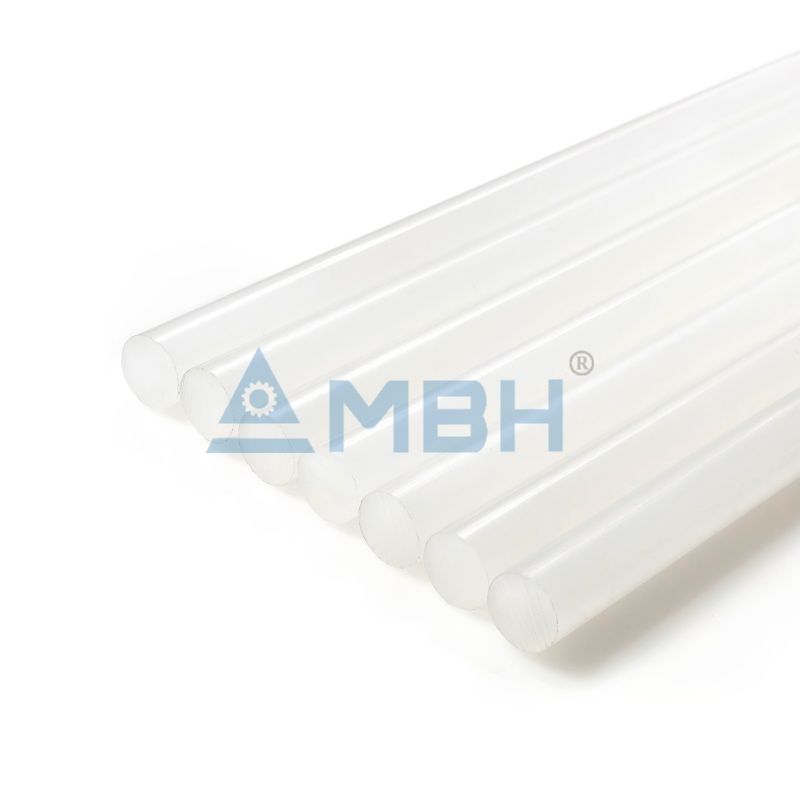

Rods
Diameters | 4mm to 100mm |
|---|
Length | 1000mm / 2000mm |
|---|
Colors | Natural |
|---|
Tolerance | ±0.1mm~±0.5mm |
|---|
Surface | Smooth, bubble-free |
|---|
Sheet
Thickness | 10mm to 100mm |
|---|
Length | 630 x 1000mm |
|---|
Technical Properties
Property | Typical Value | Unit | Test Standard |
|---|
Density | 2.13 | g/cm³ | ISO 1183 |
Max. Continuous Service Temperature | 160 | °C | ISO / ASTM |
Tensile Strength | 36 | MPa | ISO 527 |
Flame Retardant Grade | V0 | - | UL94 |
For complete technical data, please download the full TDS:
Download Full Technical Data Sheet (PDF)
Where is it used?
Category | Typical Applications |
|---|
Chemical Processing | Valve Seats & Seals, Gaskets, Diaphragms, Pump Components |
Cryogenics | LNG Valve Seats, Cryogenic Seals, Low-Temp Gaskets |
Pharmaceutical | Corrosion-Resistant Liners, Fluid Handling Parts, Sterilization Trays |
Electronics | Chemical-Resistant Chip Trays, Insulators, Wire & Cable Jacketing |
