MBH Ultem 2300 (PEI) sheets, rods and plates are extruded in-house using premium 30% glass-filled Ultem resin from SABIC. This high-performance Ultem thermoplastic combines exceptional heat resistance (200°C) with superior mechanical strength, rigidity, and inherent dimensional stability — ideal for CNC machining into precision high-strength parts.
Key Features: High Heat Resistance (200°C) | 30% Glass Filled | Superior Strength & Rigidity | Flame Retardant (V-0) | Excellent Dimensional Stability | Hydrolysis Resistance

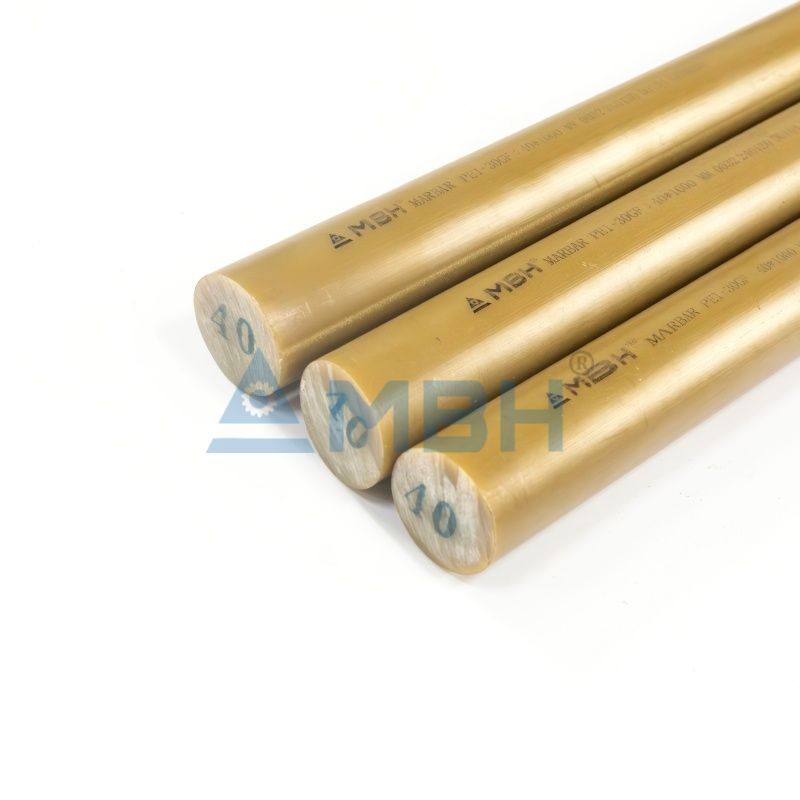

Rods
Diameters | 3mm to 260mm |
|---|
Length | 1000mm / 2000mm/Custom |
|---|
Colors | Natural/Custom |
|---|
Tolerance | 0.1mm~0.5mm |
|---|
Surface | Smooth, bubble-free |
|---|
Sheets
Thickness | 10mm to 100mm |
|---|
Length | 1000mm/Custom |
|---|
Width | 610mm/630mm/Custom |
|---|
Ultem 2300 (PEI) Technical Data Sheet
Property | Typical Value | Unit | Test Standard |
|---|
Density | 1.51 | g/cm³ | ISO 1183 |
Tensile Strength | 165 | MPa | ISO 527 |
Max. Continuous Service Temperature | 200 | °C | ISO / ASTM |
Flame Retardant Grade | V0 | - | UL94 |
For complete technical data, please download the full TDS:
Download Ultem 2300 Full Technical Data Sheet (PDF)
Where is it used?
Category | Typical Applications |
|---|
Aerospace | Aircraft Interior Panels, Air Duct Components, Structural Brackets |
Automotive | High-Temp Connectors, Sensor Housings, Transmission Parts |
Electronics | Semiconductor Test Sockets, Chip Trays, Insulating Washers |
Industrial | High-Stiffness Gears, Pump Impellers, Wear-Resistant Parts |
Have a drawing or custom specification for Ultem 2300 machining?
Contact us today for a free quote or to request a sample for testing. → See Machining Capabilities
