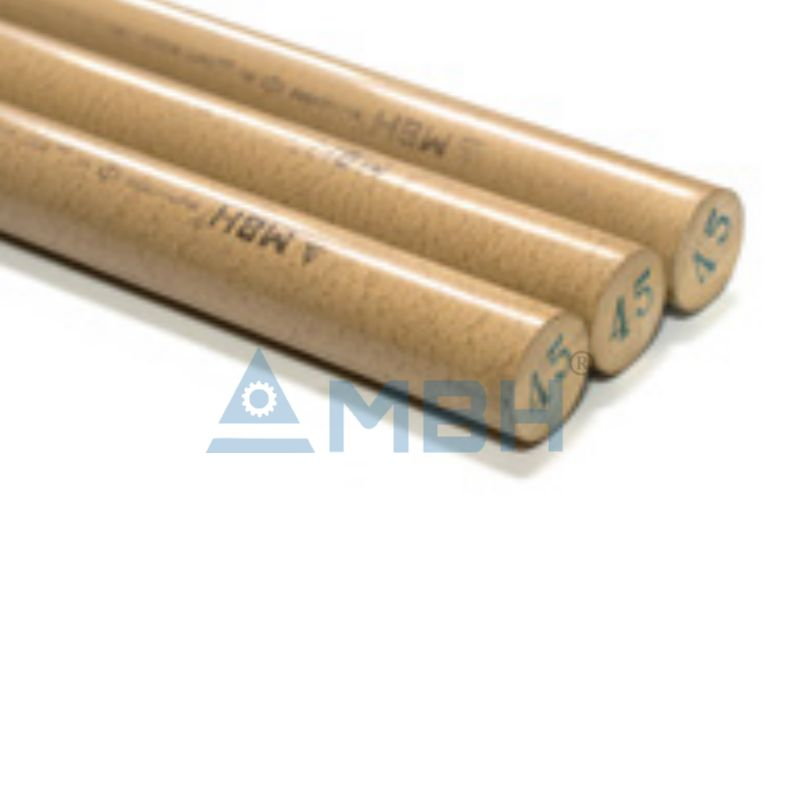

MBH PEKK sheets/rods are extruded by us using premium virgin PEKK resin. These high-performance special engineering plastic sheets and rods combine exceptional heat resistance with superior chemical resistance and outstanding mechanical strength.
Key Features: High Heat Resistance | Excellent Chemical Resistance | Superior Mechanical Strength | Good Adhesive Bonding | Inherent Flame Retardant | Excellent Dimensional Stability
Rods
Diameters | 3mm to 150mm |
|---|
Length | 1000mm / 2000mm |
|---|
Colors | Natural |
|---|
Tolerance | 0.1mm~0.5mm |
|---|
Surface | Smooth,bubble-free |
|---|
Sheet
Thickness | 10mm to 100mm |
|---|
Length | 1000 x 2000mm |
|---|
Tolerance | 0.2mm~1mm |
|---|
For technical data, please download the full TDS:
Download Technical Data Sheet (PDF)
PEKK vs PEEK
Property | PEKK | PEEK |
|---|
Continuous Use Temp. | Up to ~260°C | Up to ~250°C |
Chemical Resistance | Excellent, slightly higher | Excellent |
Bonding / Adhesion | Better adhesive bonding | Lower surface bonding |
Melt Processing | Lower melt viscosity, easier to process into complex shapes | Higher melt viscosity |
Flame Resistance | Inherently flame retardant | Inherently flame retardant |
Typical Use | Aerospace structural parts, medical implants, high-end machining stock | General high-temp structural & wear parts |
Price Level | Higher | High |
Where is it used?
Category | Typical Applications |
|---|
Aerospace | Structural Components, Precision Machined Parts, Interior Brackets |
Medical | Implantable Devices, Surgical Instrument Components |
Oil & Gas | Downhole Tools, Seals, High-Temperature Components |
Precision Machining | CNC Machined Parts, Jigs & Fixtures, High-Load Structural Parts |
