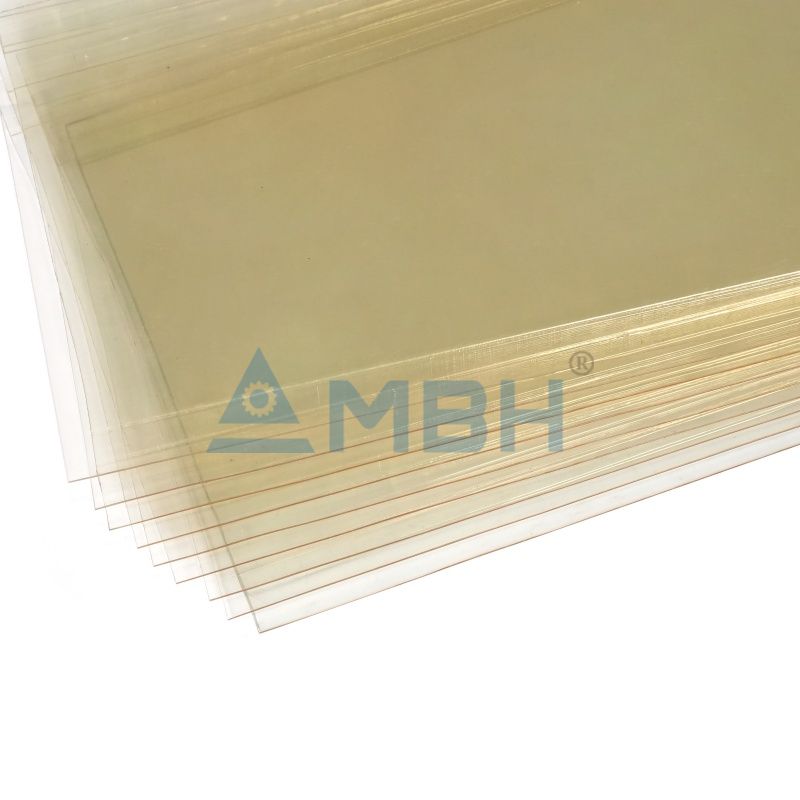

MBH PSU P1700 sheets are extruded by us using premium virgin resin from SABIC . These high-performance thermoplastic sheets combine excellent heat resistance with superior hydrolysis stability and inherent flame retardancy.
Key Features: High Heat Resistance (180°C) | Virgin Unfilled | Superior Hydrolysis Resistance | Inherent Flame Retardant (UL94 V-0) | High Dimensional Stability
Rods
Diameters | 3mm to 260mm |
|---|
Length | 1000mm / 2000mm |
|---|
Colors | Natural |
|---|
Tolerance | 0.1mm~0.5mm |
|---|
Surface | Smooth, bubble-free |
|---|
Cutting | Custom cut-to-length available |
|---|
Sheet
Thickness | 10mm to 100mm |
|---|
Length | 630 x 1000mm |
|---|
Tolerance | 0.2mm~1mm |
Cutting | Custom cut-to-length available |
|---|
✅ Most standard sizes within this range are regularly stocked and can ship within 24-48 hours after payment.
✅ For custom or non-standard sizes, typical lead time is 3-4 weeks.
✅ For real-time stock availability on your specific size, please contact us or request a quote — we'll confirm stock status and lead time immediately.
Technical Properties
Property | Typical Value | Unit | Test Standard |
|---|
Density | 1.24 | g/cm³ | ISO 1183 |
Tensile Strength | 70 | MPa | ISO 527 |
Max. Continuous Service Temperature | 175 | °C | ISO / ASTM |
Elongation at Break | 50 | % | ISO 527 |
For complete technical data, please download the full TDS:
Download Full Technical Data Sheet (PDF)
Certifications & Compliance
✓ RoHS Compliant — Free from restricted hazardous substances (lead, mercury, cadmium, etc.)
✓ REACH Compliant — Meets EU chemical safety regulations
✓ FDA Compliant — Suitable for food-contact applications
✓ USP Class VI — Certified biocompatible for medical device use
✓ UL94 V-0 — Inherently flame retardant, verified by independent testing
✓ COA (Certificate of Analysis) — Batch-specific quality test reports available for every shipment
Certificates and test reports available upon request.
Where is it used?
Category | Typical Applications |
|---|
Medical & Food | Surgical Trays, Dental Instruments, Food Processing Guides, Sterilization Racks |
Electronics | PCB Test Fixtures, Insulating Washers, Semiconductor Carriers, Connector Housings |
General Engineering | Hot Water Valves, Pump Impellers, Wear Pads, High-Temp Gears |
Aerospace | Aircraft Interior Panels, Ducting Components, Insulation Parts |
Whether you need a custom-cut piece, a mold-opened part, or fast-shipping standard stock — our team is ready to help.
Have a drawing or custom specification? Send it to us for a free technical evaluation and quote.
Need standard sizes fast? Check real-time stock availability and get same-week shipping.
