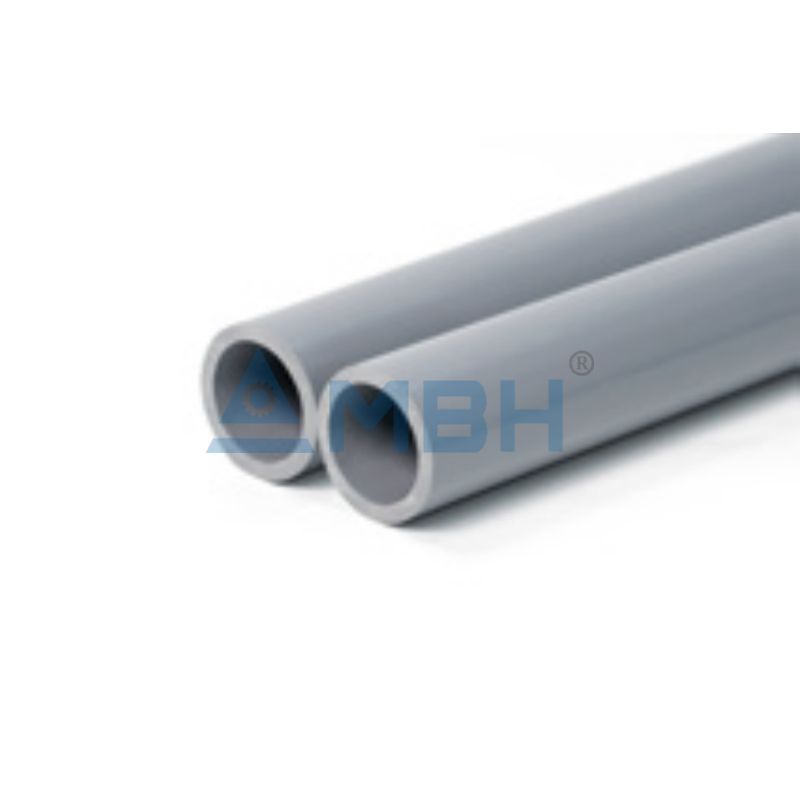

MBH PVC-C sheets/rods are extruded by us using premium virgin CPVC resin. These high-performance thermoplastic sheets and rods combine excellent chemical resistance with superior heat resistance and outstanding flame retardancy.
Key Features:
Excellent Chemical Resistance | High Heat Resistance | Inherent Flame Retardant | Good Mechanical Strength | Low Thermal Conductivity | Good Weldability
Rods
Diameters | 3mm to 260mm |
|---|
Length | 1000mm / 2000mm |
|---|
Colors | Natural |
|---|
Tolerance | 0.1mm~0.5mm |
|---|
Surface | Smooth,bubble-free |
|---|
Sheet
Thickness | 10mm to 100mm |
|---|
Length | 1000 x 2000mm |
|---|
Tolerance | 0.2mm~1mm |
|---|
For technical data, please download the TDS:
Download Technical Data Sheet (PDF)
PVC-C: The High-Temperature Answer to Standard PVC
By increasing chlorine content during production, PVC-C raises its maximum continuous service temperature from ~60°C (standard PVC) to over 90°C, while retaining PVC's excellent chemical resistance — making it the go-to choice for hot corrosive fluid handling where standard PVC would soften or fail.
Where is it used?
Category | Typical Applications |
|---|
Chemical Processing | Tank Linings, Pipe Fittings, Valve Components |
Water Treatment | Pump Housings, Fittings, Structural Parts |
Semiconductor | Etching Equipment Parts, Corrosion-Resistant Components |
Precision Machining | CNC Machined Parts, Custom Fittings |
