Why PVDF Is The King of Semiconductor Wet Process Equipment

Introduction

Semiconductor manufacturing is one of the most chemically aggressive environments on earth. In the wet process — where silicon wafers are cleaned, etched, and stripped using powerful chemical solutions — materials face a brutal combination of concentrated acids, high temperatures, and ultra-purity requirements.

Hydrofluoric acid (HF). Sulfuric acid (H₂SO₄). Hydrochloric acid (HCl). Hydrogen peroxide (H₂O₂). These are not mild chemicals. They destroy metals, degrade standard plastics, and contaminate wafers if the wrong material is used.

One material has earned its place as the undisputed choice for wet process equipment: PVDF — Polyvinylidene Fluoride.

This article explains exactly why PVDF dominates this application, what makes it irreplaceable, and which specific components are machined from PVDF sheets and rods.

What is the Semiconductor Wet Process?

The wet process is a critical stage in chip fabrication. It involves immersing or spraying wafers with chemical solutions to:

- Remove contaminants and particles (cleaning)

- Selectively dissolve layers (etching)

- Strip photoresist after patterning

These processes happen repeatedly throughout chip manufacturing, sometimes hundreds of times per wafer. The equipment handling these chemicals — tanks, carriers, valves, pumps, fittings — must withstand continuous exposure without degrading, leaching, or deforming.

Any material failure means contaminated wafers, scrapped product, and production downtime. In a fab producing chips worth thousands of dollars each, the cost of a material failure is enormous.

This is why material selection is not a cost decision. It is a reliability decision.

Why Most Plastics Fail in Wet Process Environments

Standard engineering plastics like PP and HDPE cannot survive hydrofluoric acid exposure. PTFE offers excellent chemical resistance but is too soft and creep-prone to machine into tight-tolerance components. PFA matches PVDF chemically but costs significantly more and is harder to process. PEEK, despite its outstanding mechanical properties, is not suitable for HF environments.

PVDF is the only material that simultaneously delivers:

- Resistance to HF, H₂SO₄, HCl, and H₂O₂

- Sufficient hardness for precision CNC machining

- Ultra-high purity with no extractables

- Dimensional stability under thermal cycling

- Proven track record in leading semiconductor fabs worldwide

The Unique Properties That Make PVDF Irreplaceable

1. Chemical Resistance to Hydrofluoric Acid

HF is the harshest test for any plastic. It attacks silica, glass, and most polymers. PVDF's fluorinated backbone — where fluorine atoms shield the carbon chain — makes it highly resistant to HF at both room temperature and elevated process temperatures up to 140°C.

No other machinable engineering plastic offers this level of HF resistance.

2. Ultra-High Purity

Semiconductor processes are contamination-sensitive at the parts-per-billion level. PVDF made from virgin Kynar or Solef resin contains no plasticizers, fillers, or additives that could leach into process chemicals and contaminate wafers.

This purity standard is why only specific resin grades — Kynar 7010, 9000HD, 1000HD, Solef 6012 — are specified by semiconductor equipment manufacturers.

3. Precision Machinability

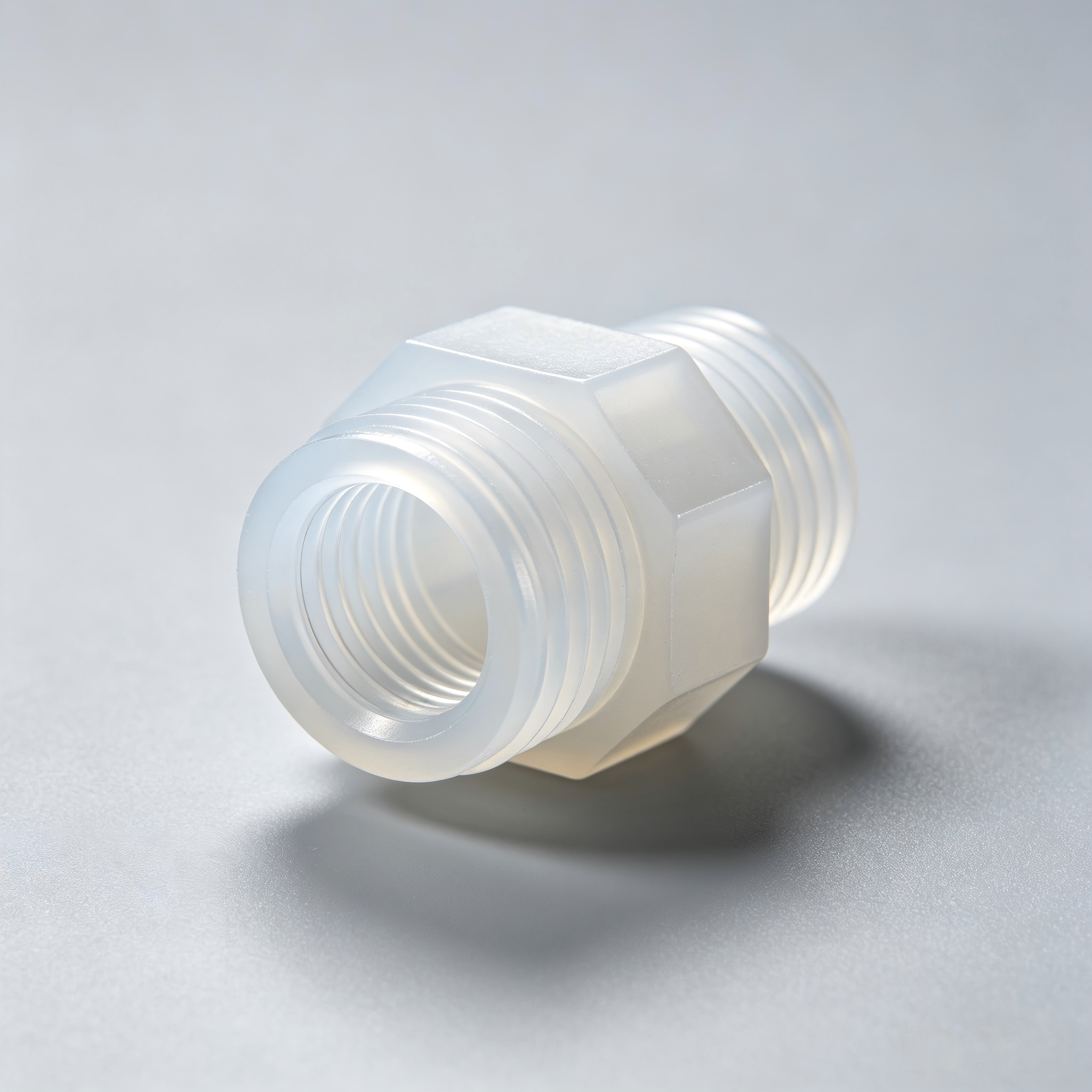

Unlike PTFE which deforms under cutting forces, PVDF machines cleanly and holds tight tolerances. Complex geometries — valve seats, carrier slots, fitting threads — can be machined from PVDF rod and sheet stock with standard CNC equipment.

This machinability is essential. Wet process components are not simple shapes. They require precision that only a rigid, stable material can deliver.

4. Dimensional Stability

Wet process equipment cycles through temperature and chemical exposure repeatedly. PVDF maintains its dimensions under these conditions, ensuring consistent sealing, alignment, and flow control throughout the equipment's service life.

5. Inherent Flame Retardancy

PVDF is inherently flame retardant without additives, meeting semiconductor cleanroom safety requirements without compromising purity.

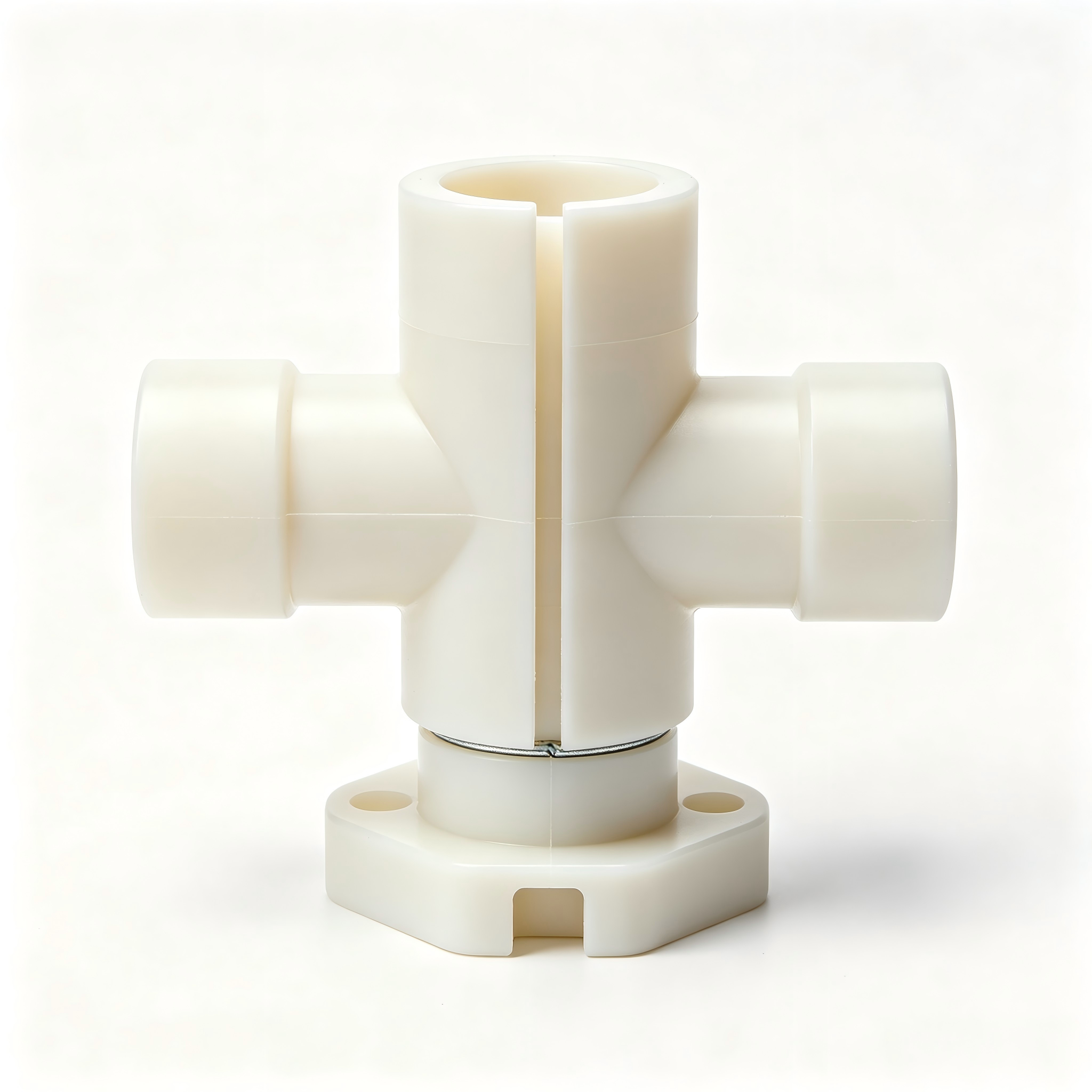

PVDF Components in Semiconductor Wet Process Equipment

Every one of these components can be machined directly from PVDF sheet or rod stock — which is why consistent, high-quality PVDF semi-finished products are critical to semiconductor equipment manufacturers.

Kynar vs Solef: Which PVDF Grade for Semiconductor?

Not all PVDF is equal. The resin source matters.

MBH supplies PVDF sheets and rods using virgin resin from both Arkema and Solvay — the two most trusted PVDF resin producers specified by semiconductor equipment manufacturers globally.

---

Why Source PVDF Sheet & Rod from MBH

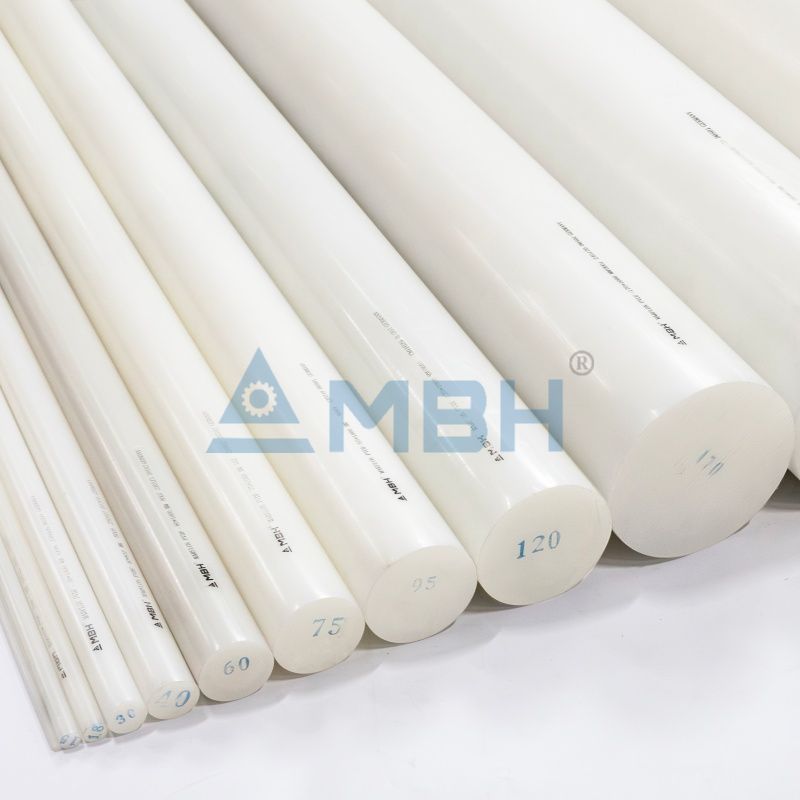

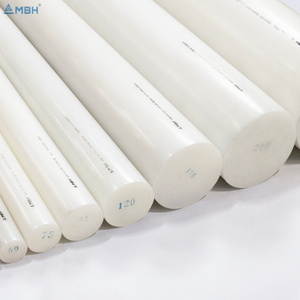

MBH Engineering Plastic extrudes PVDF sheets and rods in-house using premium virgin Kynar and Solef resin. This means:

- Consistent quality — no recycled or blended resin

- Full traceability — resin certificates available

- Wide size range — sheets and rods in standard and custom dimensions

- Factory direct pricing — no middleman markup

- Fast lead times — stock available for standard sizes

Whether you need standard dimensions or custom-cut sizes for your wet process equipment components, MBH can supply.

Conclusion

In semiconductor wet process equipment, there is no substitute for PVDF. Its unique combination of HF resistance, ultra-high purity, machinability, and dimensional stability makes it the only practical choice for the components that handle the industry's most aggressive chemicals.

If you are sourcing PVDF sheets or rods for semiconductor equipment manufacturing, contact MBH Engineering Plastic for specifications, material certificates, or a quote.
