How To Optimize Dimensional Stability in PCTFE Machining for Cryogenic Valves

The Challenges of Cryogenic Sealing

In LNG and liquid nitrogen applications (operating at -162°C to -196°C), material failure is not an option. PCTFE is the industry standard for valve seats due to its high compressive strength and resistance to cold flow. However, many machinists struggle with internal stress cracking during the CNC process.

Best Practices for Machining PCTFE

To ensure a zero-leakage seal, the following technical factors must be considered:

1. Stress Relief (Annealing): Our factory implements a long-cycle, controlled cooling process to ensure the polymer chains are relaxed before machining.

2. Thermal Management: PCTFE has low thermal conductivity. Sharp tools and optimized feed rates are necessary to prevent localized overheating, which can lead to deformation.

3. Zero-Void Extrusion: Using high-purity virgin resin and precise extrusion controls ensures there are no microscopic air pockets that could compromise the seal under high pressure.

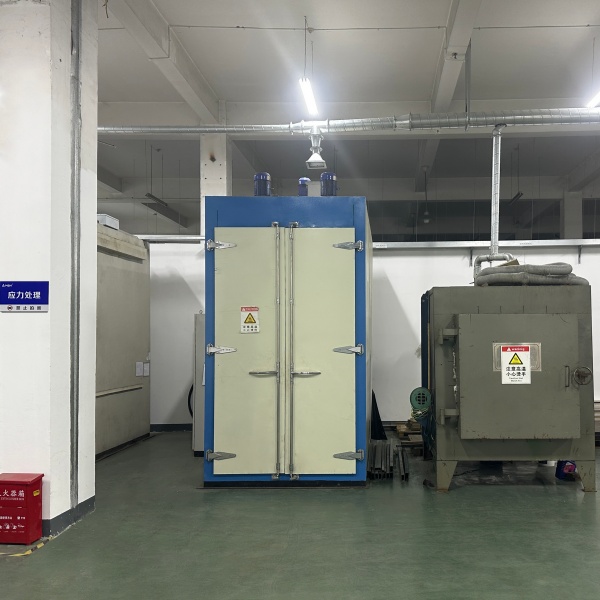

Our precision annealing ovens perform long-cycle stress relief for PCTFE,

 ensuring the material remains dimensionally stable and crack-resistant even in

 extreme -196°C cryogenic sealing environments.
