PEEK Tg Vs Tm: What Engineers Need To Know

Views: 0     Author: MBH     Publish Time: 2026-06-16      Origin: MBH office

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Introduction

When engineers specify PEEK (Polyether Ether Ketone) for high-performance applications, two thermal properties are critical — yet frequently confused: Tg (glass transition temperature) and Tm (melting point).

Mixing up these two values during part design or process planning can lead to dimensional instability, mechanical failure, or scrapped parts.

This guide breaks down the difference, provides reference data for common Victrex PEEK grades, and offers practical guidance for machining and application selection.

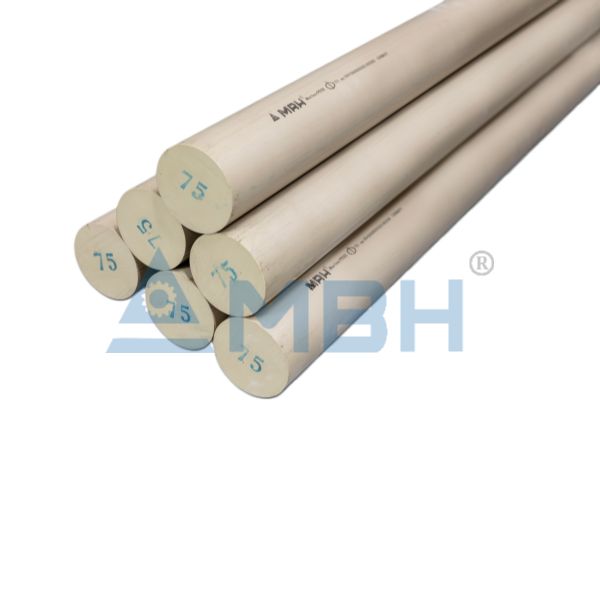

PEEK rod and plate stock material

What Is Tg in PEEK?

Tg, or glass transition temperature, is the point at which an amorphous polymer transitions from a rigid, glassy state to a softer, more rubbery state.

For standard Victrex PEEK, Tg is approximately 143°C (289°F).

Above this temperature, PEEK begins to lose stiffness and dimensional stability — even though it has not melted. This is a critical threshold for:

- Structural parts operating in elevated temperature environments

- Precision components where tight tolerances must be maintained

- Any application involving prolonged thermal exposure

PEEK material DSC test data showing glass transition and melting point

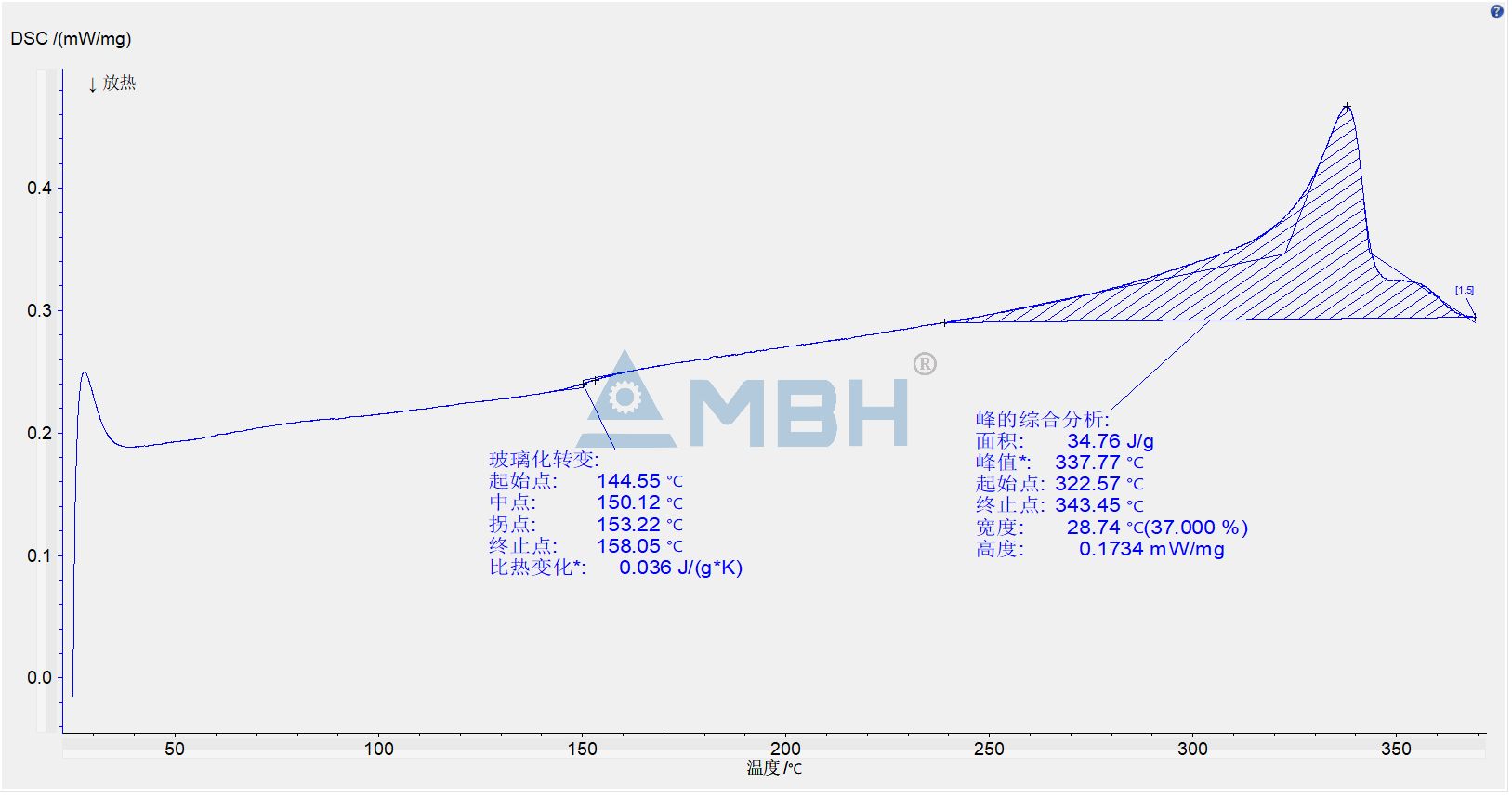

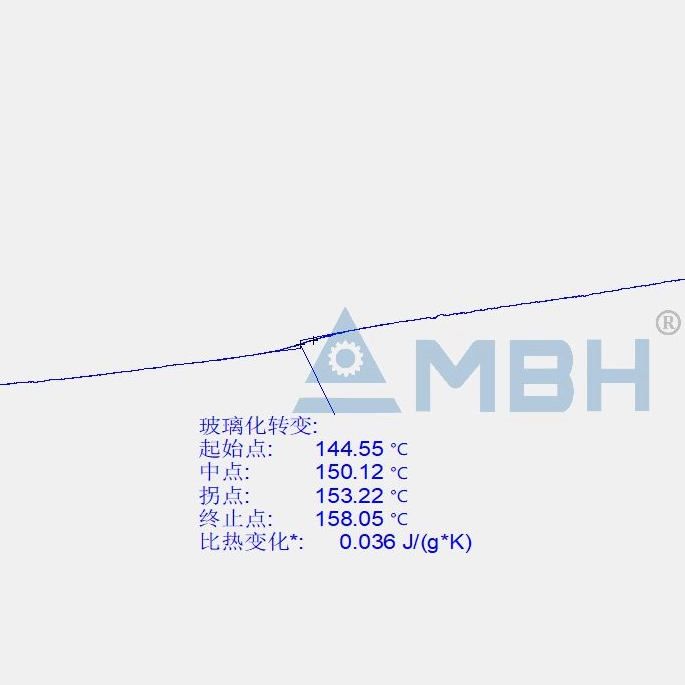

DSC (Differential Scanning Calorimetry) test conducted in our lab on PEEK raw material, confirming Tg midpoint at 150.12°C and Tm peak at 337.77°C — consistent with published technical data.

What Is Tm in PEEK?

Tm, or melting point, is the temperature at which the crystalline regions of PEEK fully melt. For Victrex PEEK, Tm is approximately 343°C (649°F).

This is the processing temperature range used during:

- Injection molding

- Extrusion

- Compression molding

It is important to note: PEEK does not simply "melt" at 143°C. Between Tg and Tm, semi-crystalline PEEK retains significant structural integrity due to its crystalline phase — but amorphous PEEK does not.

Tg vs Tm: Side-by-Side Comparison

Property

Tg (Glass Transition)

Tm (Melting Point)

Temperature (Victrex PEEK)

~143°C/289°F

~343°C/649°F

What happens

Amorphous phase softens

Crystalline phase melts

Effect on part

Loss of stiffness & dimensional stability

Material flows

Relevant for

Part design, operating limits

Molding & extrusion processing

Risk if ignored

Creep, deformation under load

Degradation, poor part quality

Victrex PEEK Grade Tg & Tm Reference Data

Different Victrex grades share similar Tg and Tm values, but vary significantly in viscosity, mechanical performance, and application suitability.

Victrex Grade

Typical Application

Tg (°C)

Tm (°C)

Melt Viscosity

PEEK 450G

General purpose, injection molding

143

343

Medium

PEEK 150G

Thin-wall, complex geometry parts

143

343

Low

PEEK 90G

Ultra-thin wall, high flow needs

143

343

Very Low

PEEK 150CA30

Carbon fiber reinforced, structural

143

343

Medium-High

PEEK 450FC30

Bearing & wear applications

143

343

Medium

Data reference: Victrex technical datasheets. Always verify with current grade-specific TDS before final specification.

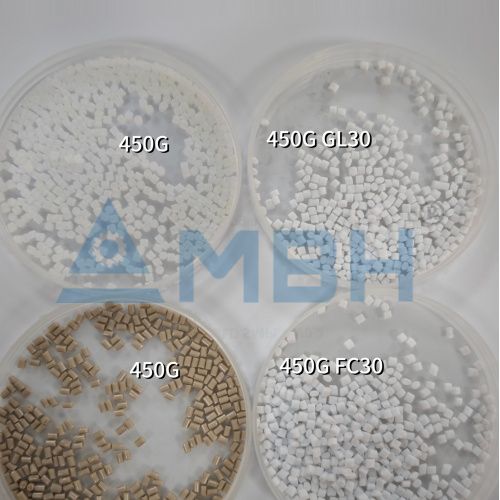

Victrex PEEK raw material pellets granules

Why This Matters for Machining PEEK

If you are CNC machining PEEK from rod, plate, or tube stock, Tg is directly relevant to your process:

Heat buildup during machining can approach or exceed Tg, especially with:

- High spindle speeds without adequate cooling

- Dull tooling causing friction heat

- Deep cuts on thin-wall features

When localized temperatures exceed 143°C at the cutting zone, the material can exhibit:

- Surface smearing

- Dimensional deviation post-machining

- Residual stress leading to warping after release

Practical recommendations from our machining experience:

- Use sharp, uncoated carbide tooling

- Apply compressed air or coolant directed at the cutting zone

- Allow semi-finished parts to stabilize at room temperature before final finishing cuts

- For tight-tolerance features, take light finishing passes at reduced feed rates

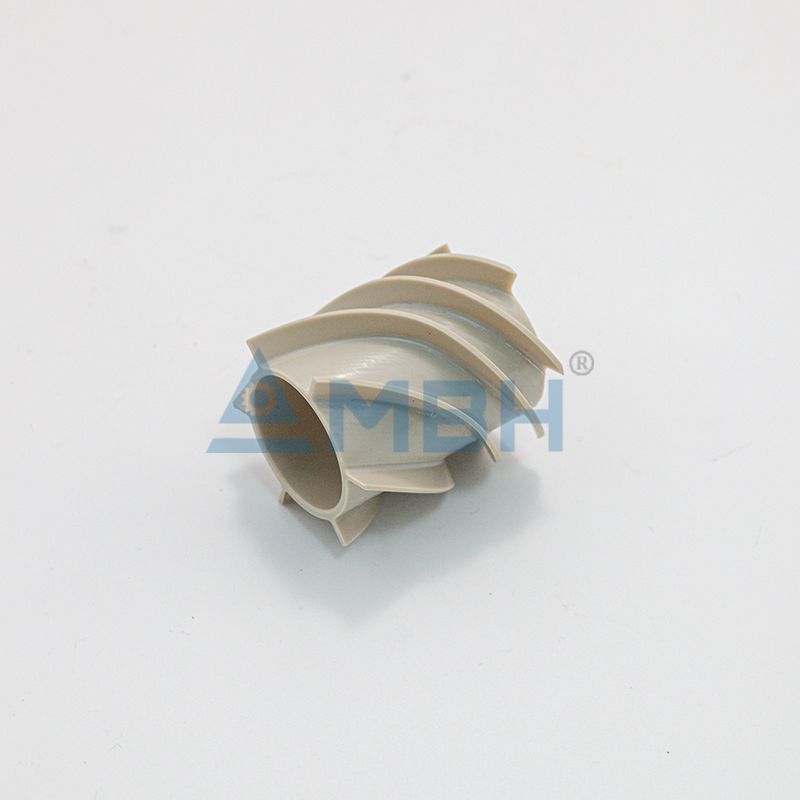

PEEK plastic machined impeller part

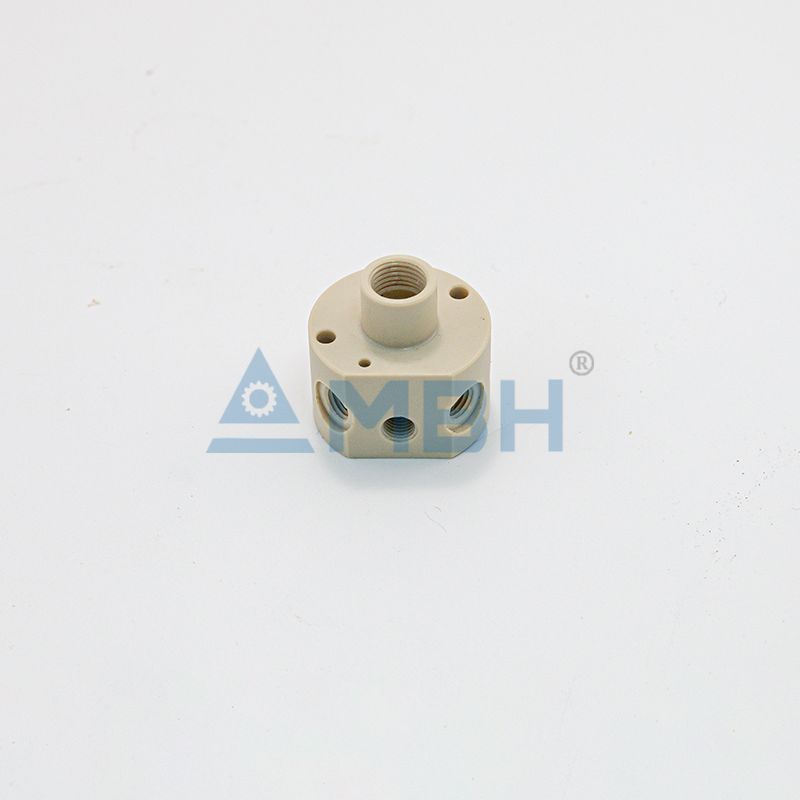

PEEK plastic CNC machined connector block with holes

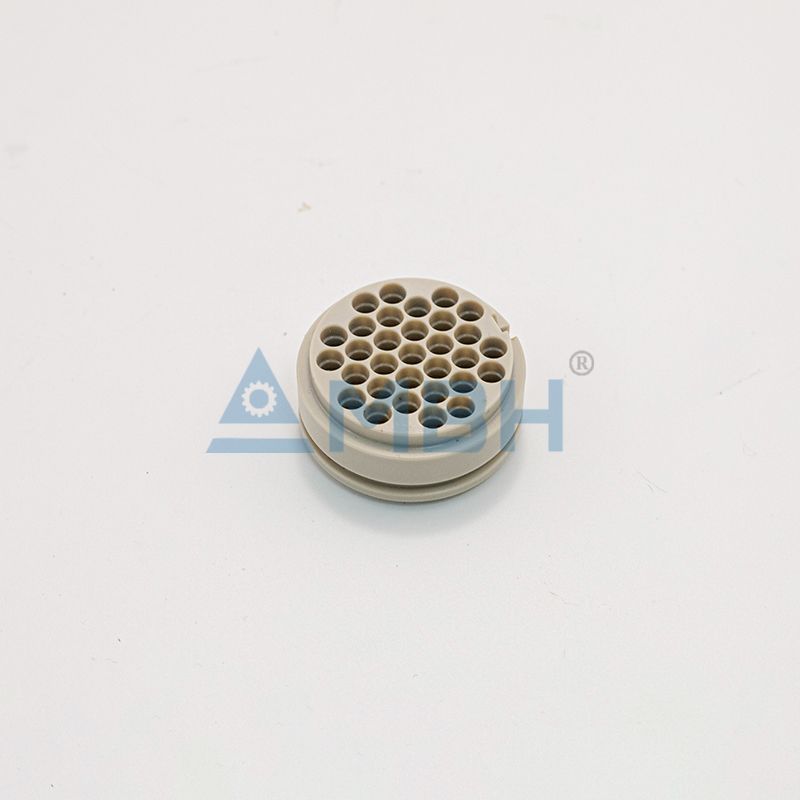

PEEK plastic precision machined part with multiple drilled holes

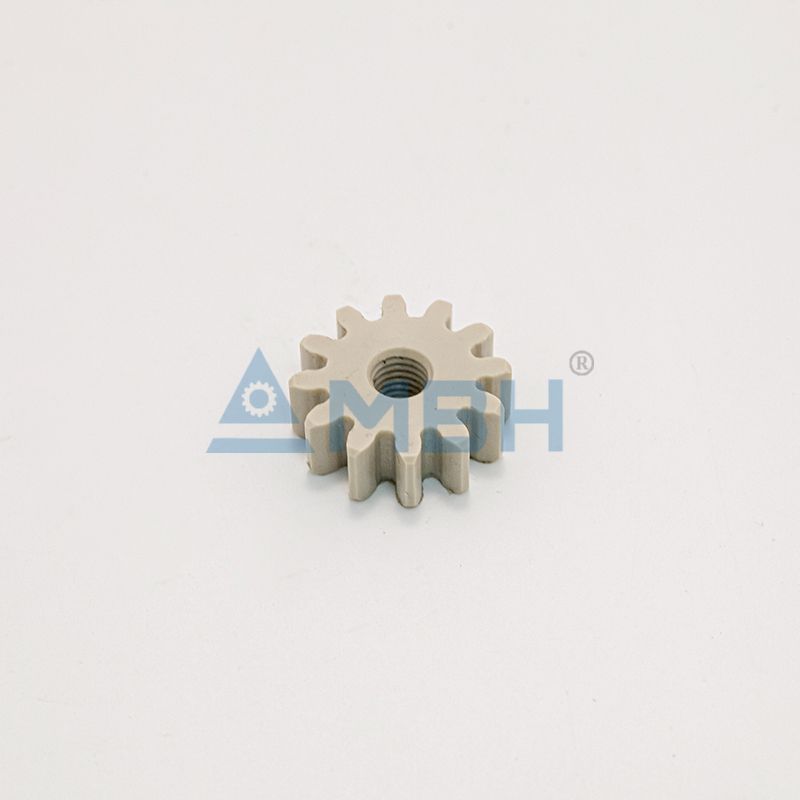

PEEK plastic machined gear component

Operating Temperature Limits: Designing Within the Right Range

Temperature Range

PEEK Behavior

Design Guidance

Below 143°C

Fully rigid, stable

Safe for continuous structural use

143°C – 250°C

Softening begins (amorphous phase)

Avoid sustained load-bearing use

250°C – 340°C

Significant softening

Short-term exposure only

Above 343°C

Melt phase

Processing only, not service conditions

For continuous service, most engineering applications specify PEEK components to operate below 250°C, with optimal long-term performance below Tg for precision or load-bearing parts.

PEEK vs Alternative High-Performance Polymers: Tg Comparison

Material

Tg (°C)

Continuous Use Temp (°C)

Notes

Victrex PEEK

143

250

Benchmark high-performance polymer

Solvay KetaSpire PEEK

143

250

Direct PEEK equivalent

ULTEM 1010 (PEI)

217

170

Higher Tg, lower continuous use temp

Torlon PAI

275

260

Highest Tg, specialty processing required

PVDF

-40

150

Chemical resistance focus, lower temp rating

This comparison helps engineers evaluate whether PEEK is the right choice or whether an alternative polymer better fits the thermal and mechanical requirements.
